Day 61 - REST API

Mar 08, 20255 min read

Jeremy’s IT Lab lecture video:

Day 61 - REST API

Commands

No Commands :)

REST API Info

An API is a software interface that allows two applications to communicate with each other.

  • APIs are essential not just for network automation, but for all kinds of applications.
  • IN SDN architecture, APIs are used to communicate between apps and the SDN Controller (via the NBI), and between the SDN Controller and the network devices (via the SBI).
  • The NBI typically uses REST APIs
  • Netconf and Restconf are popular Southbound APIs.

CRUD

CRUD (Create, Read, Update, Delete) refers to the operations we perform using REST APIs.

  1. Create
    • Create operations are used to create new variables and set their initial values.
    • Example: Create variable “ip_address” and set the value to “10.1.1.1”
  2. Read
    • Read operations are used to retrieve the value of a variable.
    • Example: What is the value of variable “ip_address”?
  3. Update
    • Update operations are used to change the value of variable.
    • Example: Change the value of variable “ip_address” to “10.2.3.4”
  4. Delete
    • Delete operations are used to delete variables.
    • Example: Delete variables “ip_address”.

  • HTTP uses verbs (aka. methods) to map these CRUD operations.
  • REST APIs typically use HTTP.
PurposeCRUD OperationHTTP Verb
Create new variableCreatePOST
Retrieve value of a valueReadGET
Change the value of variableUpdatePUT, PATCH
Delete variableDeleteDELETE

HTTP Request

When an HTTP client sends a request to an HTTP server, the HTTP header includes information like this:

  • An HTTP Verb (ie. GET).
  • A URI (Uniform Resource Identifier), indicating the resource it is trying to access.

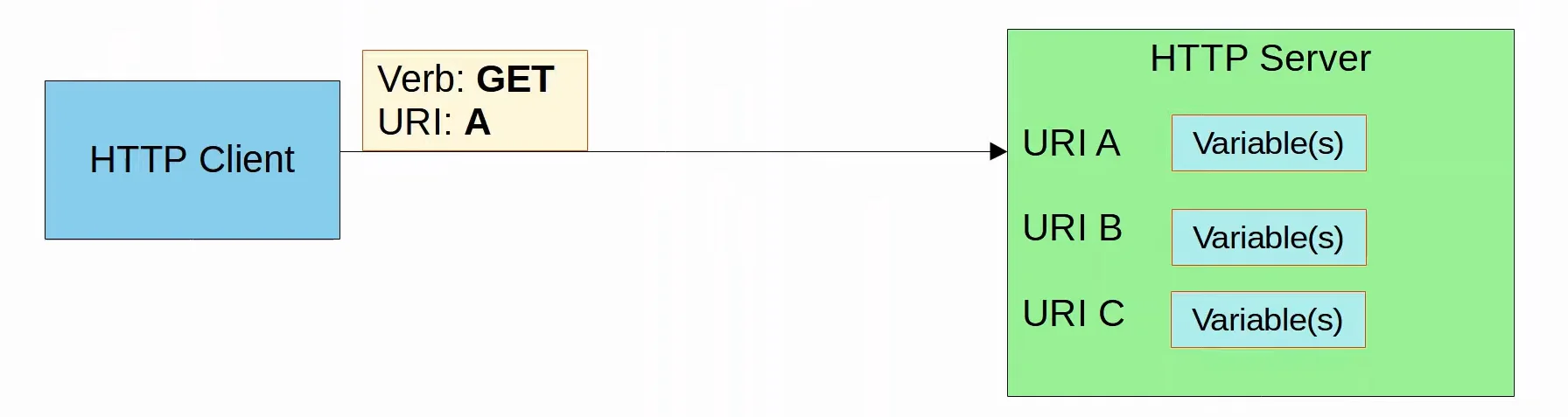

HTTP Request Example
  • A URI consists of three different parts
    1. Scheme
    2. Authority
    3. Paths
  • Example: https://sandboxdnac.cisco.com/dna/intent/api/v1/network-device
    • Scheme: https
    • Authority: sandboxdnac.cisco.com
    • Paths: dna/intent/api/v1/network-device

HTTP Request - Headers

  • HTTP request can include additional headers which pass additional information to the server.

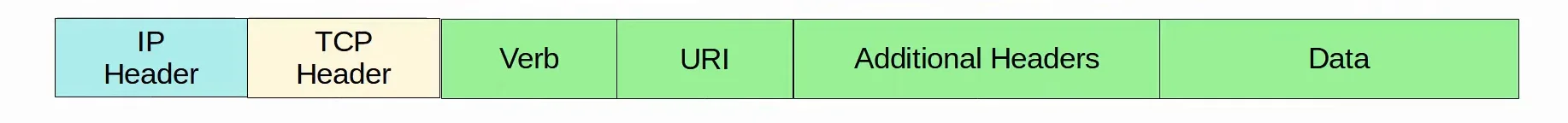

Example HTTP Request with extra headers
  • An example would an Accept header, which informs the server about the type(s) of data that can be sent back to the client.
  • When a REST client makes an API call (request) to a REST server, it will send an HTTP request like the one above.
  • REST APIs don’t have to use HTTP specifically for communication, although HTTP is the most common choice.

HTTP Response

  • The server’s response will include a status code indicating the request succeeded or failed, as well as the other details.
  • The first digit indicates the class of the response:
    1. 1xx Informational
      • The request was received, continuing process.
    2. 2xx Successful
      • The request was successfully received, understood, and accepted.
    3. 3xx Redirection
      • Further action needs to be taken in order to complete the request.
    4. 4xx Client Error
      • The request contains bad syntax or cannot be fulfilled.
    5. 5xx Server Error
      • The server failed to fulfill an apparently valid request.

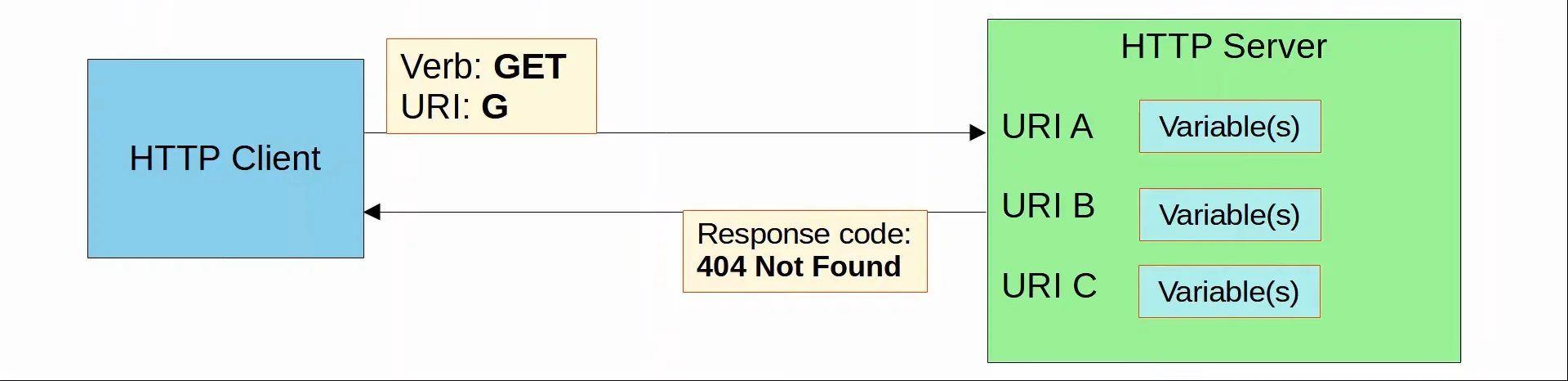

HTTP Request & Response Example (1)

HTTP Response - Example Codes

  1. 1xx Information
    • 102 Processing:
      • Indicates that the server has received the request and is processing it, but the response is not yet available.
  2. 2xx Successful
    • 200 OK
      • Indicates that the request succeeded.
    • 201 Created
      • Indicates that the request succeeded and a new resource was created (ie. in response to POST)
  3. 3xx Redirection
    • 301 Moved Permanently
      • Permanently indicates that the requested resource has been moved, and the server indicates its new location.
  4. 4xx Client Error
    • 403 Unauthorized
      • Means the client must authenticate to get a response.
    • 404 Not Found
      • Means the requested resource was not found.
  5. 5xx Server Error
    • 500 Internal Server Error
      • Means the server encountered something unexpected that it doesn’t know how to handle.

REST

REST stands for Representational State Transfer.

  • REST APIs are also known as REST-based APIs OR RESTful APIs
  • REST isn’t a specific API. Instead, it describes a set of rules about how the API should work.

  • The six constraints of RESTful architecture are:
    1. Uniform Interface
    2. Client-server
    3. Stateless
    4. Cacheable or non-cacheable
    5. Layered system
    6. Code-on-demand

REST - Client-server

REST APIs use a client-server architecture.

  • The client uses API calls (HTTP Requests) to access the resources on the server.
  • The separation between the client and server means they can both change and evolve independently of each other.
    • Therefore, when the client application changes or the server application changes, the interface between them must NOT break.

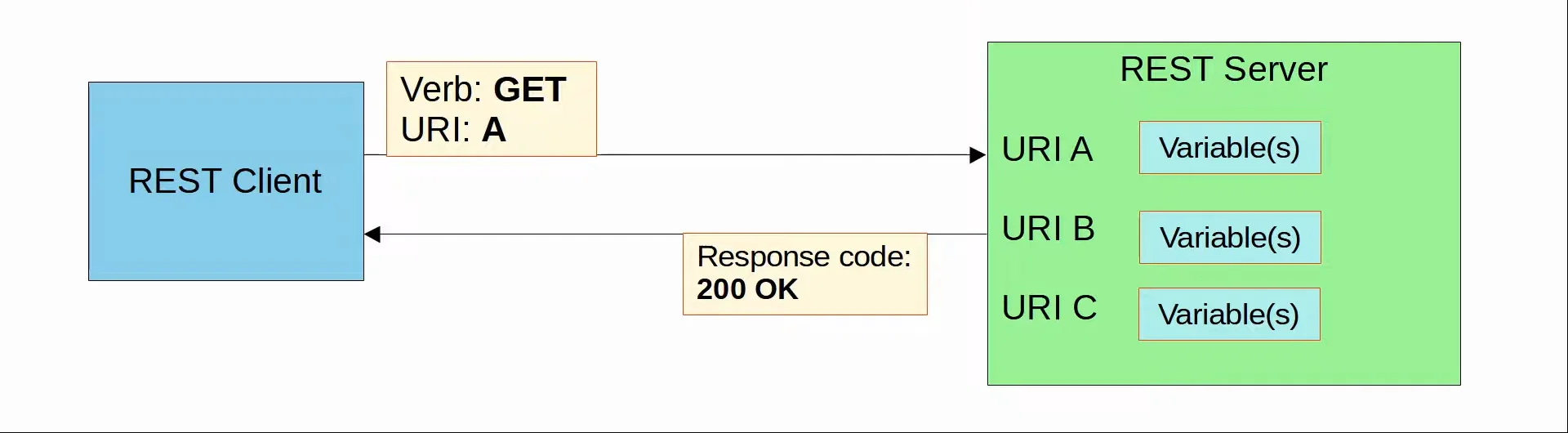

HTTP Request & Response Example (2)

REST - Stateless

REST APIs exchanges are stateless

  • This means that each API exchange is a separate event, independent of all past exchanges between the client and server.
  • The server does not store information about previous requests from the client to determine how it should respond to new requests.
  • If authentication is required, this means that the client must authenticate with the server for each request it makes.
  • TCP is an example of a stateful protocol.
  • UDP is an example of a stateless protocol.

REST APIs and TCP - Stateful and Stateless

  • Although REST APIs use HTTP, which uses TCP (stateful) as its Layer 4 protocol, HTTP and REST APIs themselves aren’t stateful. The functions of each layer are separate.

REST - Cacheable or Non-Cacheable

REST APIs must support caching of data.

  • Caching refers to storing data for future use.
  • Not all resources have to be cacheable, but cacheable resources MUST be declared as cacheable.
