Jeremy’s IT Lab lecture video:
Commands
No Commands :)
Container Info
Virtual Machines
- VMs allow multiple OS’s to run on a single physical server.
- The OS in each VM can be the same or different.
- Bins/Libs are the software libraries/services needed by the apps running in each VM.
- A VM allow its app/apps to run in an isolated environment, separate from the apps in the other VMs.
- VMs are easy to create, delete, move and etc. They can easily saved and moved between different physical servers.
- A Hypervisor is used to manage and allocate hardware resources to each VM.
- A Type 1 hypervisor (aka Native or Bare-metal) is the type of hypervisor which runs directly on top of the hardware.
- They are widely used in data center environments.
- A Type 2 hypervisor (aka Hosted) run as a program on an operating system called a Host OS like a regular computer program.
- They can be used to run a virtual network lab on your PC using Cisco Modeling Labs.
- A Type 1 hypervisor (aka Native or Bare-metal) is the type of hypervisor which runs directly on top of the hardware.

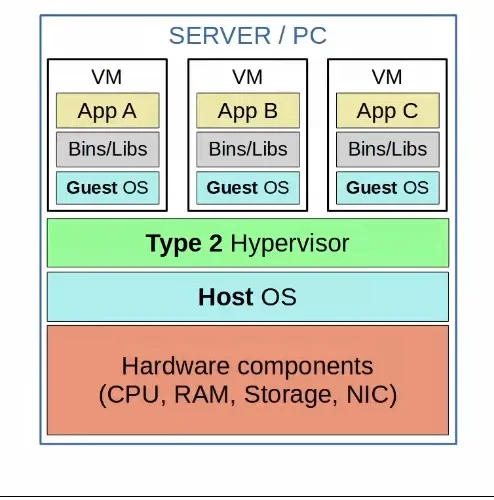

---Containers/ATCH-1-Day-54-(2)---Containers-20240422163652.webp) | ---Containers/ATCH-2-Day-54-(2)---Containers-20240422164411.webp) |
|---|---|
| Type 1 Hypervisor Visualized | Type 2 Hypervisor Visualized |
Containers
Containers are software packages that contain an app and all its required dependencies (Bins/Libs) for the contained app to run.
- Containers run on a Container Engine (ie. Docker Engine), which is run on a host OS.
- Containers are lightweight and include only the dependencies required to run the specific app.
- A Container Orchestrator is a software platform automating the deployment, management, scaling etc. of containers. These are used to operate large-scale systems (ie. Microservices) can require thousands of containers.
- Kubernetes is the most popular container orchestrator.
- Docker Swarm is Docker’s container orchestration tool.

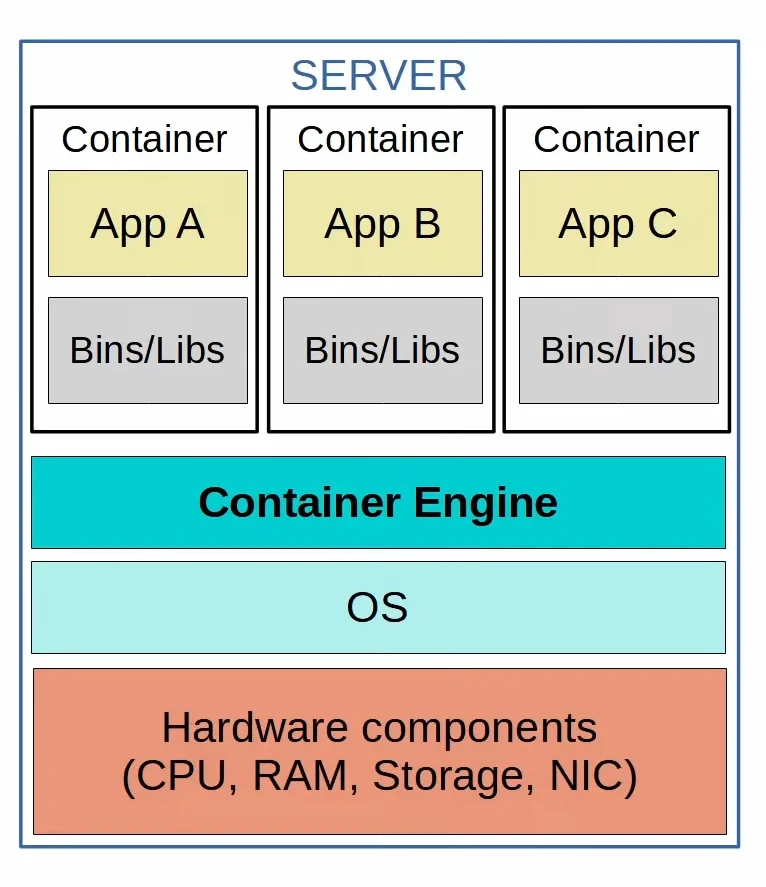

---Containers/ATCH-Day-54-(2)---Containers-20240422165500.webp) |
|---|
| Container Visualized |
Virtual Machines VS Containers
- Virtual Machines:
- Can take minutes to boot up as each VM runs its own OS.
- Take up more disk space. (in gigabytes)
- Use more CPU/RAM resources. (each VM must run its own OS)
- Portable and can move between physical systems running the same hypervisor.
- More isolated because each VM runs its own OS.
- Containers:
- Can boot up in milliseconds.
- Take up very little disk space.
- Use fewer CPU/RAM resources. (Shared OS)
- Portable as they are smaller, faster to boot up, and Docker containers can be run on nearly any container service.
- Less isolated because they all run on the same OS instance; if the OS crashes, all containers running on it are effected.
