ARP is a protocol that is used to learn the MAC address of another device with a known IP address.

  • Typically, it is a two message exchange consisting of:
    1. ARP Request
    2. ARP Reply
  • The ARP message itself is a Layer 2 message, but within the ARP header, it contains the sender MAC and IP, as well as the target MAC and IP.

Gratuitous ARP

A Gratuitous ARP message is an ARP Reply that is sent without receiving an ARP Request.

  • It is sent to the broadcast MAC address.
  • It allows other devices to learn the MAC address of the sending device without having to send ARP Requests.
  • Some devices automatically send GARP messages when an interface is enabled, IP address is changed, MAC address is changed, and etc.

Dynamic ARP Inspection

Dynamic ARP Inspection (DAI) is a security feature of switches that is used to filter ARP messages received on untrusted ports.

  • DAI only filters ARP messages. Non-ARP messages are not affected by it.
  • By default, all ports are untrusted. There’s also a standard to follow while assigning trusted ports.
    • Trusted ports should be all the ports connected to other network devices (switches, routers)
    • Untrusted ports should be all ports connected to end hosts.

ARP Poisoning (man-in-the-middle attack)

ARP Poisoning is an attack that’s similar to the DHCP Poisoning attack. It involves an attacker manipulating targets’ ARP tables so traffic is sent to the attacker.

  • In order for the attacker to accomplish this, the attacker can send GARP messages using another device’s IP address.
  • Other devices in the network will receive the GARP and update their ARP tables, which will cause them to send traffic to the attacker instead of the legitimate destination.

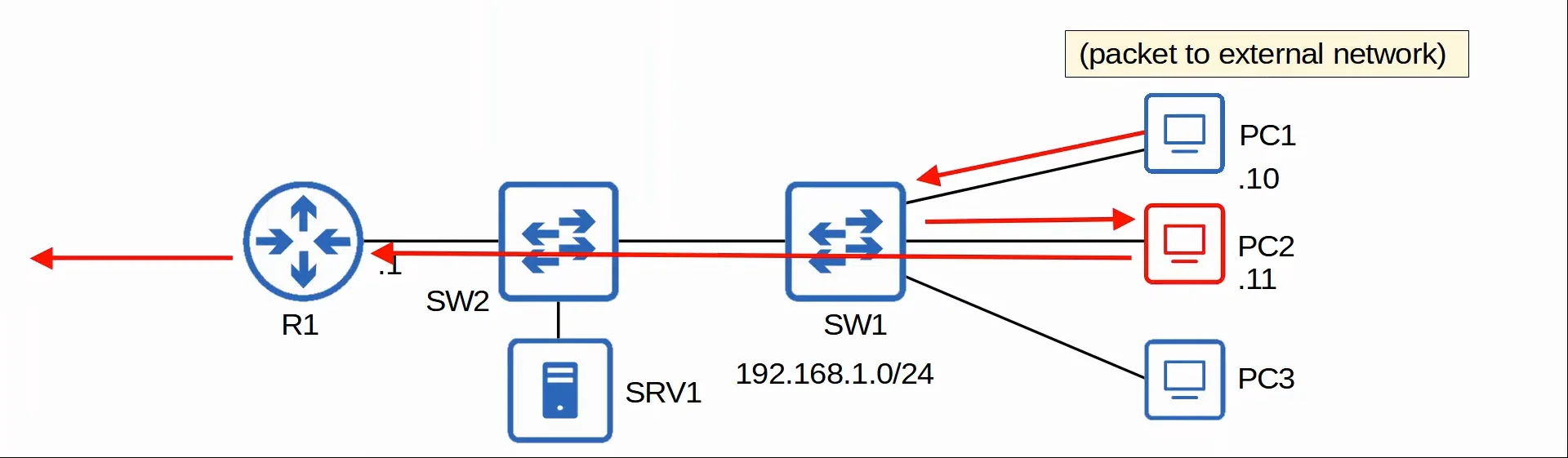

ARP Poisoning Attack Demonstration

DAI Operations

  • When an ARP packet is received, DAI will do the following checks:
    • If a message arrived on a trusted port:
      • DAI does not inspect the messages and they are forwarded as normal.
    • If a message arrived on an untrusted port, do the following:
      • Examine the sender MAC and sender IP fields of ARP messages received on untrusted port, and checks that there is a matching entry in the DHCP snooping binding table.
        • Match = Forward the ARP message
        • No match = Discard the ARP message

  • ARP ACLs can be manually configured to map IP/MAC addresses for DAI to check.
    • They are mainly used for hosts which do not utilize DHCP, therefore, they do not have an entry in the DHCP snooping binding table.
  • DAI can also be configured to perform more optional in-depth checks.

  • Like DHCP snooping, DAI also supports rate-limiting to prevent attackers from overwhelming the switch with ARP messages.
    • The reason this exists is because features like DHCP snooping and DAI both require work from the switch’s CPU.
    • Even if an attacker’s messages are blocked, they can overload the switch’s CPU with excessive ARP messages.

DAI Configurations

  • show ip arp inspection
    • Shows a summary of the Dynamic ARP Inspection configuration as well as statistics.
  • show ip arp inspection interfaces
    • Shows the status of Dynamic ARP Inspection on the switch’s interfaces.
  • ip arp inspection vlan VLAN-ID
    • Enables Dynamic ARP Inspection on the specified VLAN.
    • (Unlike DHCP snooping, DAI doesn’t have to be enabled globally beforehand)
  • ip arp inspection validate VALIDATION-MODE ( SRC-MAC | DST-MAC | IP ) ^arp-inspection-validate-cmd
    • Configures the current ARP Inspection validation method(s).
    • Supports 3 validation modes, being src-mac, dst-mac, ip.
    • (You can use multiple by specifying them in the same command)
  • ip arp inspection trust
    • Configures the current interface as trusted for ARP inspections,
  • ip arp inspection limit rate PACKETS burst interval SECONDS
    • Limits how many ARP packets are allowed per burst interval
    • (Default settings are: 15 packets per 1 burst interval, in other words, 15 packets per second)
  • arp access-list ARP-ACL-ID
    • Creates an ARP ACL and enters ARP ACL configuration mode.
      • In configuration mode:
      • { permit | deny } ip host ip-address mac host mac-address
  • ip arp inspection filter ARP-ACL-ID vlan VLAN-ID
    • Applies an ARP ACL on the specified VLAN

DAI Rate-Limiting

DAI rate-limiting is enabled on untrusted ports by default with a rate of 15 packets per second.

  • It is disabled on trusted ports by default.
  • DAI also supports a burst interval, which means it can handle data that arrives in quick short bursts, and will not err-disable the interface (If the bursts don’t go over the configured limit set through ip arp inspection limit rate PACKETS burst interval SECONDS).
  • Can be re-enabled with shutdown ⇒ no shutdown, or through ErrDisable Recovery (errdisable recovery cause arp-inspection).

Difference between rate-limiting on DHCP snooping and DAI

  1. DHCP snooping
  • Rate-limiting is disabled on all interfaces by default.
  • Rate-limit format: ==X packets per second==.
    • Default: 15 packets per second
  1. DAI
  • Rate-limiting is enabled on untrusted ports and disabled on trusted ports by default.
  • Rate-limit format: ==X packets per Y seconds==.
    • Default: 15 packets per 1 second

DAI Optional Checks

There are optional DAI checks that you can enable (with ip arp inspection validate MODE) to further secure your network from attacks.

They include:

  1. src-mac
    • Enables validation of the source MAC address in the Ethernet header against the sender MAC address in the ARP body for ARP Requests and ARP Responses.
    • The devices classifies packets with different MAC addresses as invalid and drops them.
  2. dst-mac
    • Enables validation of the destination MAC address in the Ethernet header against the target MAC address in the ARP body for ARP Responses.
    • The device classifies packets with different MAC addresses as invalid and drops them.
  3. ip
    • Enables validation of the ARP body for invalid and unexpected IP addresses. Addresses include (0.0.0.0, 255.255.255.255), and all IP multicast addresses.
    • The device checks the sender IP addresses in all ARP Requests and ARP Responses and checks the target IP addresses only in ARP Responses.

Optional checks and DAI

  • These checks are done in addition to the standard DAI check (sender MAC/IP).
  • If optional checks are configured, an ARP message must pass all of the checks to be considered valid.

DAI ARP ACL

For hosts which do not use DHCP, you can create an ARP ACL that will permit ARP messages from said devices.

  • You’ll need to create an ARP ACL with arp access-list ARP-ACL-ID and set a rule to permit ARP traffic from that specific host.
  • Then you can apply it with DAI through the ip arp inspection filter ARP-ACL-ID vlan VLAN-ID command
